Manual Layout
Measuring, snapping and marking before painting.
PRECISION BUILT
FOR PAVEMENT.
ROADS
AIRPORTS
PARKING LOTS
MADE IN
AMERICA
PAVEMENT LAYOUT
SHOULDN’T START
WITH A TAPE MEASURE.
Manual methods waste time, create inconsistencies, and cost you more every time you restripe.

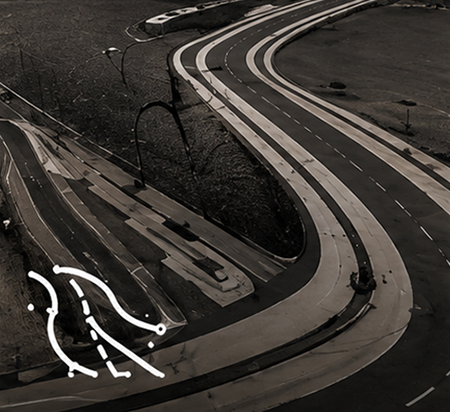

Complex Geometry
Curves, offsets and custom layouts require skilled operators.

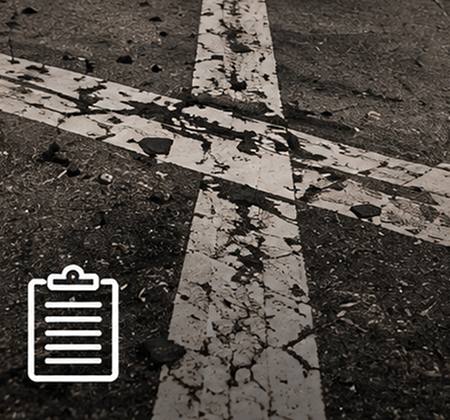

Recreating Old Work
The same job has to be measured again when it’s time to restripe.

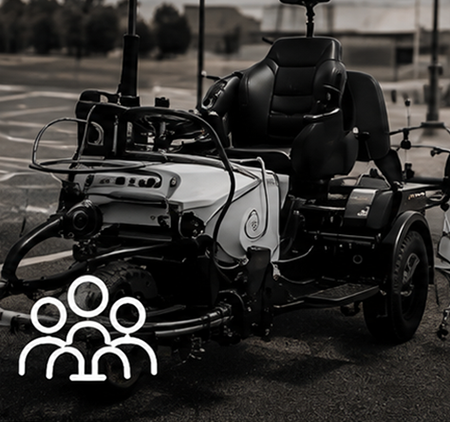

Operator Variability
Results depend too heavily on who’s behind the machine.
BUILD IT ONCE. STRIPE IT AGAIN AND AGAIN.
Build Your Layout
FOUR WAYS TO BUILD.
ONE WAY TO STRIPE.
Create accurate striping layouts the way that works best for you. Save to the cloud and stripe with confidence — every time.
01

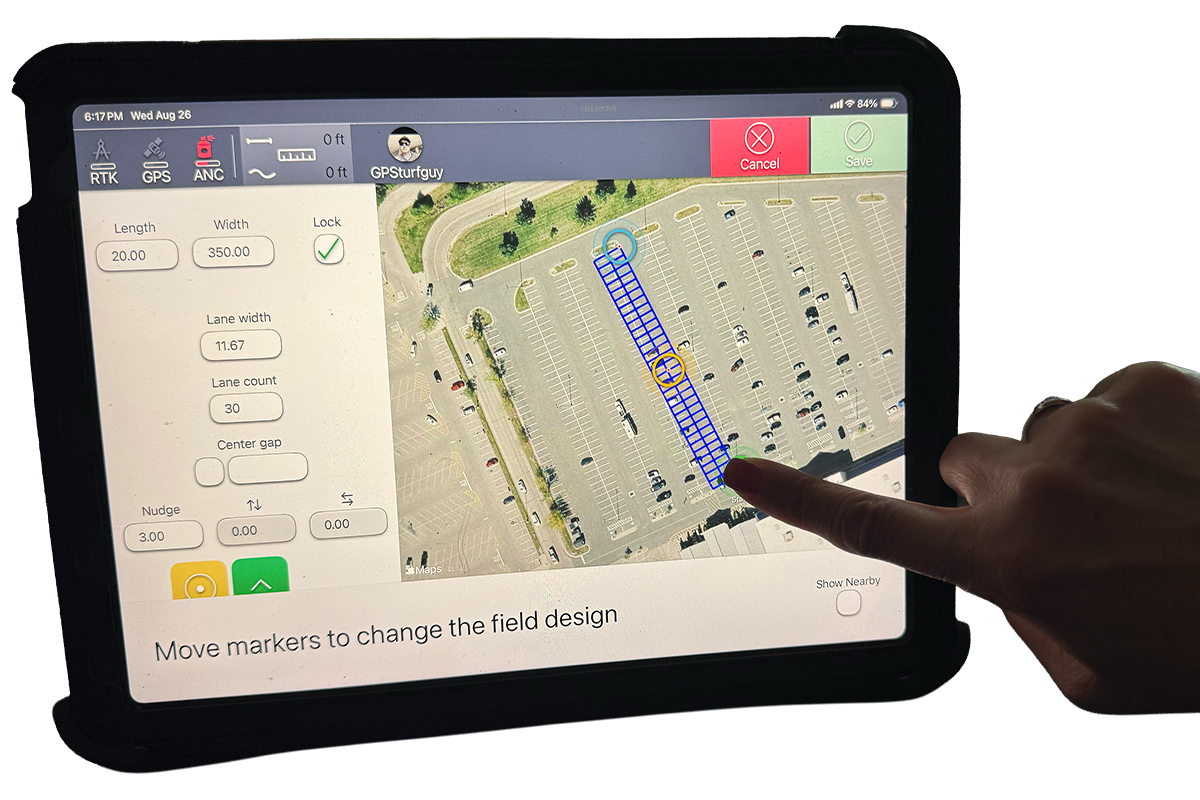

Build In-App
Create parking spaces, dimensions, roads and objects directly at the job.
02

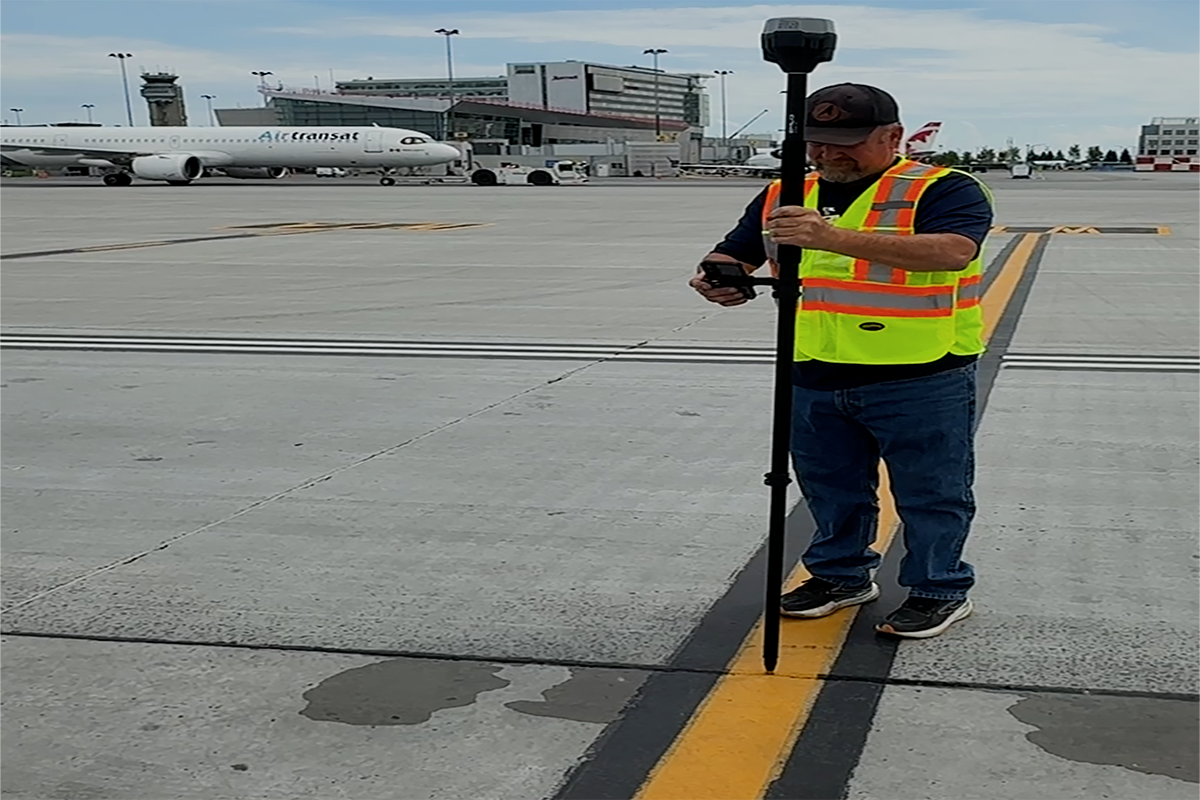

Survey
Capture known points, boundaries and existing pavement features.
03

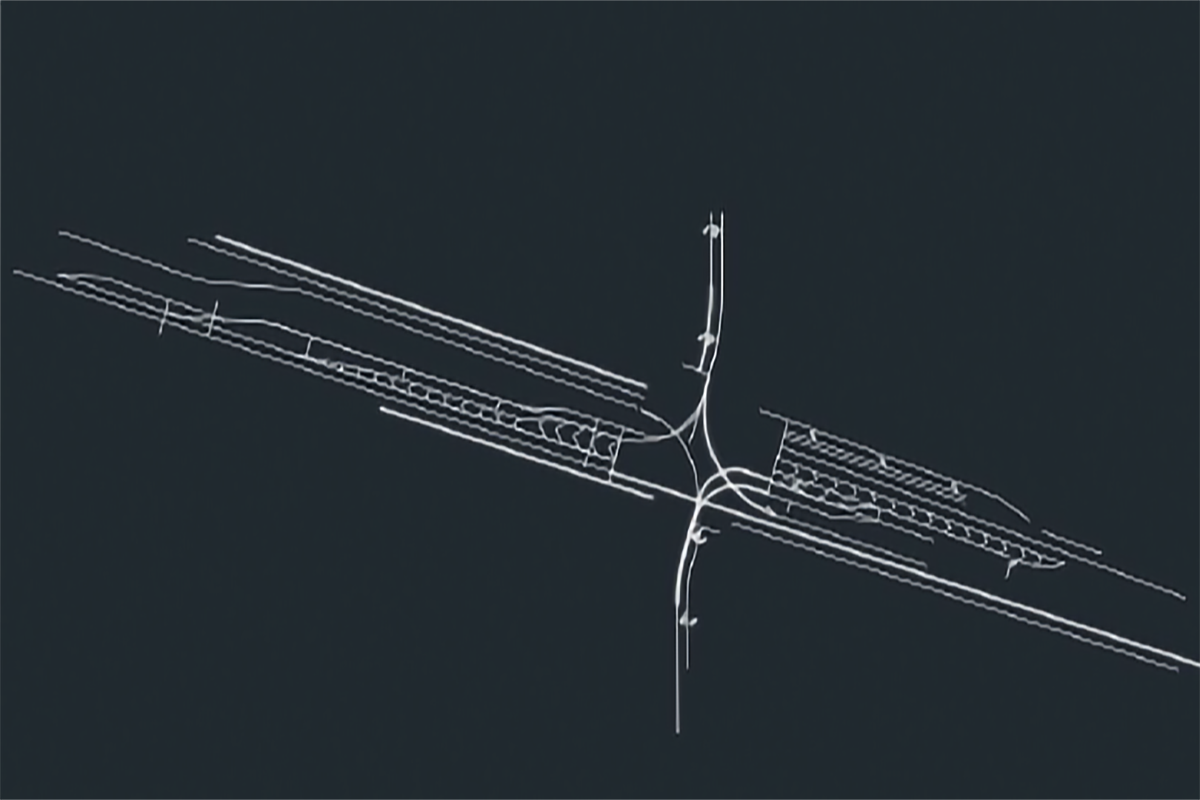

CAD
Import professionally designed striping layouts.
04

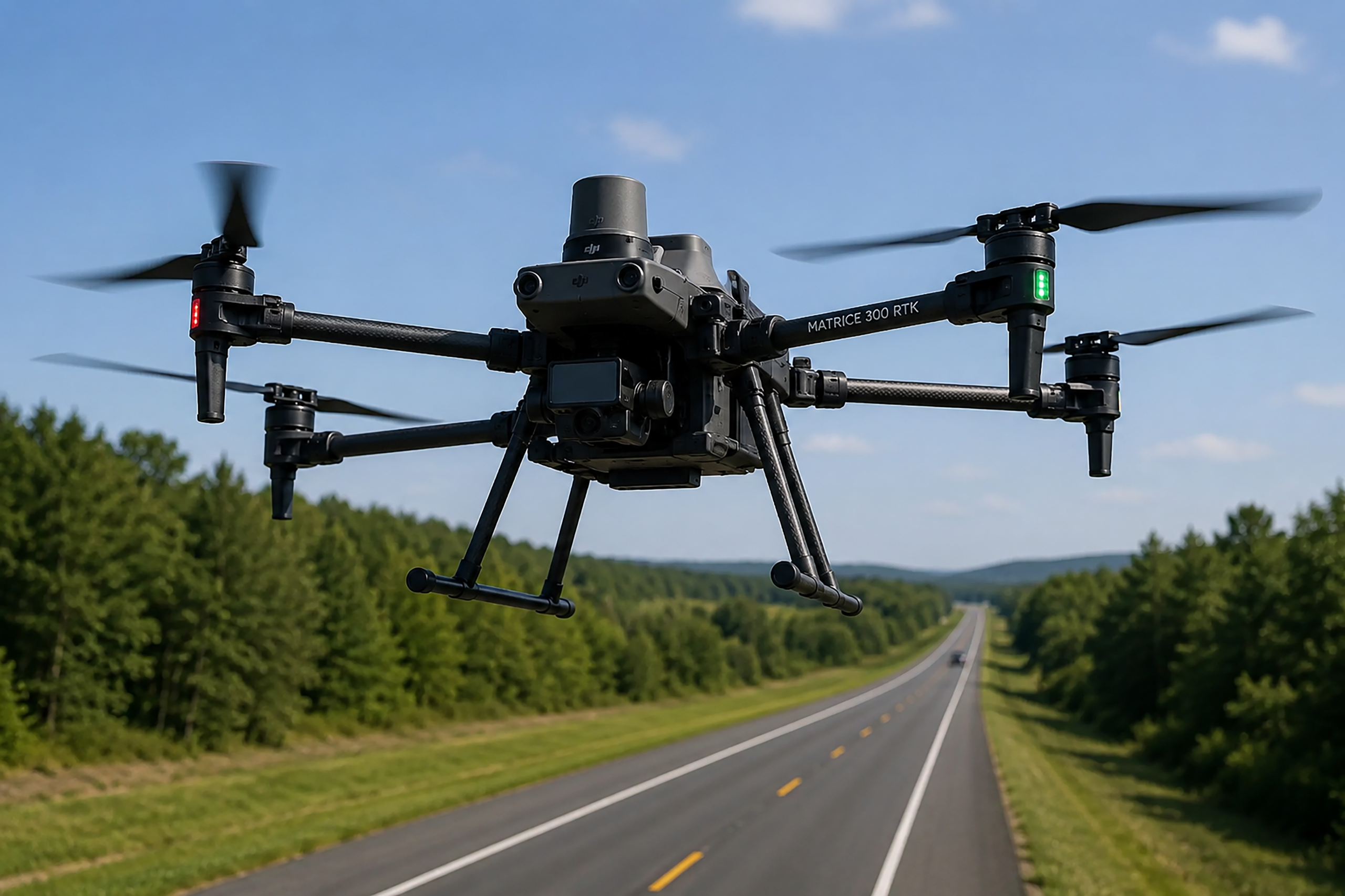

Drone
Capture existing conditions and convert them into geolocated striping plans.
01
Build In-App
Create parking spaces, dimensions, roads and objects directly at the job.
02
Survey
Capture known points, boundaries and existing pavement features.
03
CAD
Import professionally designed striping layouts.
04
Drone
Capture existing conditions and convert them into geolocated striping plans.
DESIGN
→
SAVE
→
STRIPE
→
REPEAT
Software Walkthrough
FROM BLANK PAVEMENT TO
A PAINTABLE OBJECT.
Build, position, edit and save real-world pavement layouts from one intuitive interface.
01
Current Workflow
Visually Build Parking — In App
Workflow Assets Coming Next
This workflow is ready for additional walkthrough assets.
STEP 01 OF 09
Parking Type
Repeatability
THE SECOND TIME IS
WHERE GPS
CHANGES EVERYTHING.
01
BUILD ONCE
02
SAVE TO
SAVE TO
THE CLOUD
03
RETURN TO
RETURN TO
THE JOB
04
STRIPE THE
STRIPE THE
SAME OBJECT AGAIN
NO REMEASURING.
NO REBUILDING.
JUST LOAD THE
JOB AND STRIPE.
JOB AND STRIPE.

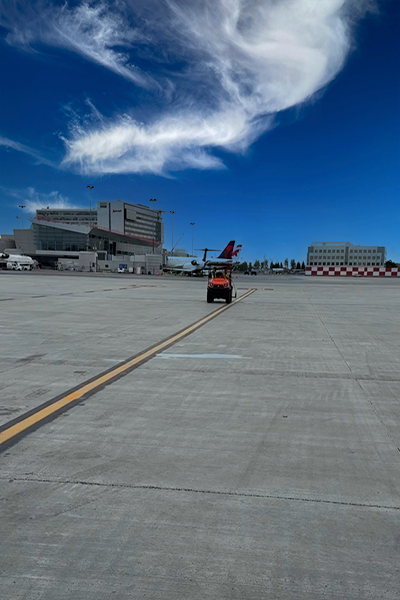

Applications
BUILT FOR THE
PAVEMENT YOU MARK.
One platform. Built for three very different striping environments.
Roads
- Centerlines
- Edge Lines
- Intersections
- Curves & Transitions
- Custom Markings

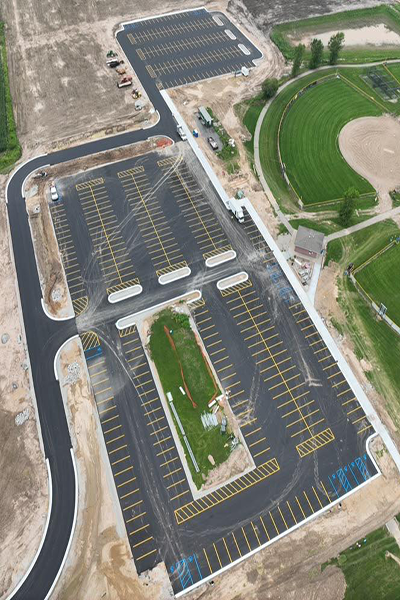

Parking Lots
- Parking Stalls
- ADA Layouts
- Custom Angles
- Large Facilities
- Temporary Parking
Equipment
CHOOSE HOW YOU STRIPE.
GRACO
LINELAZER 250 GPS
- Stand-on or optional seat-kit
- Hydraulic GPS steering
- Stripetraq control
- Ideal for parking + airports
- Existing-machine conversion or all new

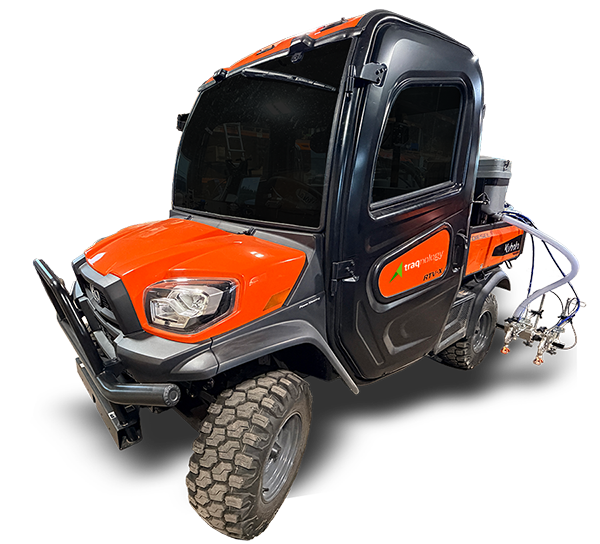

KUBOTA
GPS STRIPER
- Larger-capacity pavement platform
- Multiple paint guns
- High paint capacity
- Glass bead options
- Up to two hydraulic Graco pumps
- Designed for larger production work
RTK Network Advantage
HOW TRAQNOLOGY RTK WORKS.
Our network. Your advantage. One-centimeter repeatable accuracy across North America.
01
Satellites
GPS satellites continuously broadcast positioning signals across North America.
02
RTK Network
Traqnology reference stations calculate precise positioning corrections in real time.
03
Cellular Delivery
RTK corrections are delivered securely to the machine through reliable cellular networks.
04
Your StripeTraq
Your striping machine receives centimeter-level positioning so saved pavement objects can be repeated with confidence.
Traqnology RTK Network
Always On. Always Accurate.
1
Satellites
GPS satellites broadcast positioning signals around the clock.
2
RTK Network
Reference stations calculate precise real-time corrections.
3
Cellular Delivery
Corrections travel securely through cellular networks.
4
Your StripeTraq
Centimeter-level corrections reach your striping machine.
NO BASE STATIONS. NO TRIPODS. NO CALIBRATION EVERY JOB. JUST ONE-CENTIMETER REPEATABLE ACCURACY.
Real-World Striping
FROM DESIGN TO PAVEMENT.
WHAT YOU BUILD ON THE IPAD BECOMES WHAT THE MACHINE PAINTS.
