Universal GPS Line Marking System
Sportstraq’s innovation of universal fit to any UTV combined with a high-pressure, airless paint system (painttraq 500) and an iPad interface is a first for the industry.
Ready To Learn More?
Fill out the form below and we will contact you:
Traqnology is pleased to introduce sportstraq.
Sportstraq puts the power of precision and control in the palm of your hands. Initial field layouts only have to be completed once and take less than 5 minutes. Users can create as many field designs as they choose and all data is backed up on our cloud.

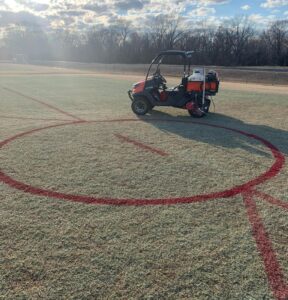

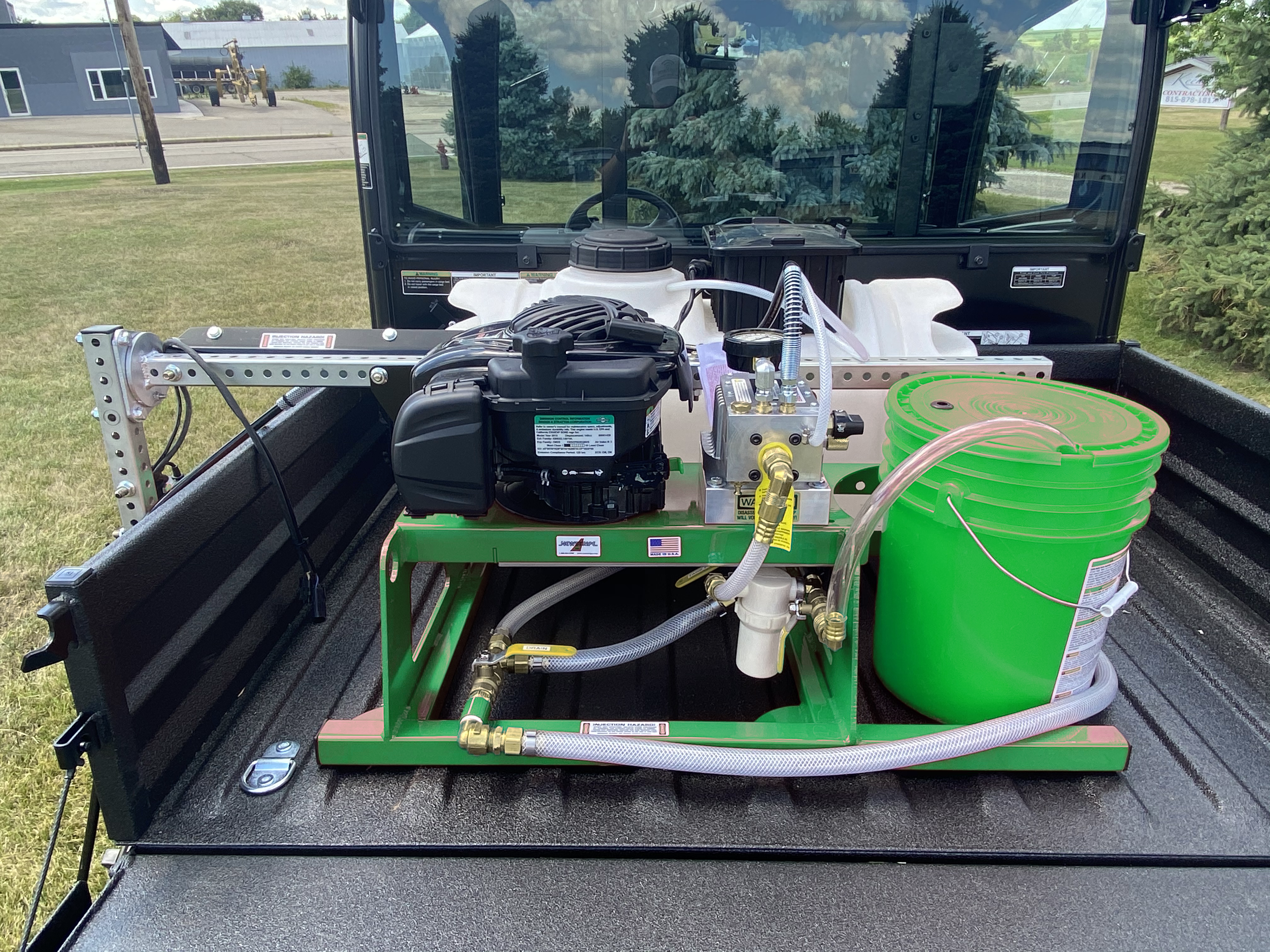

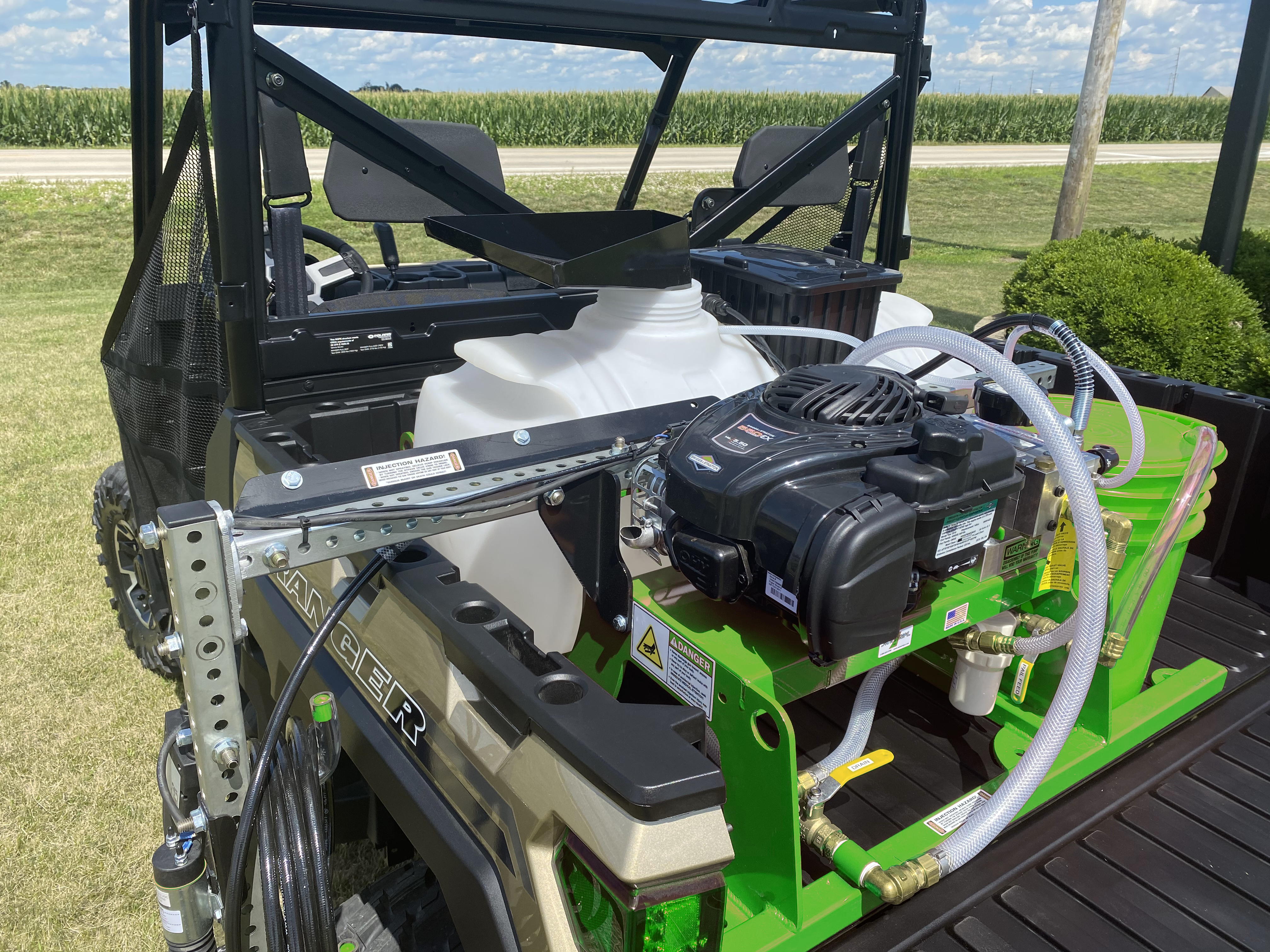

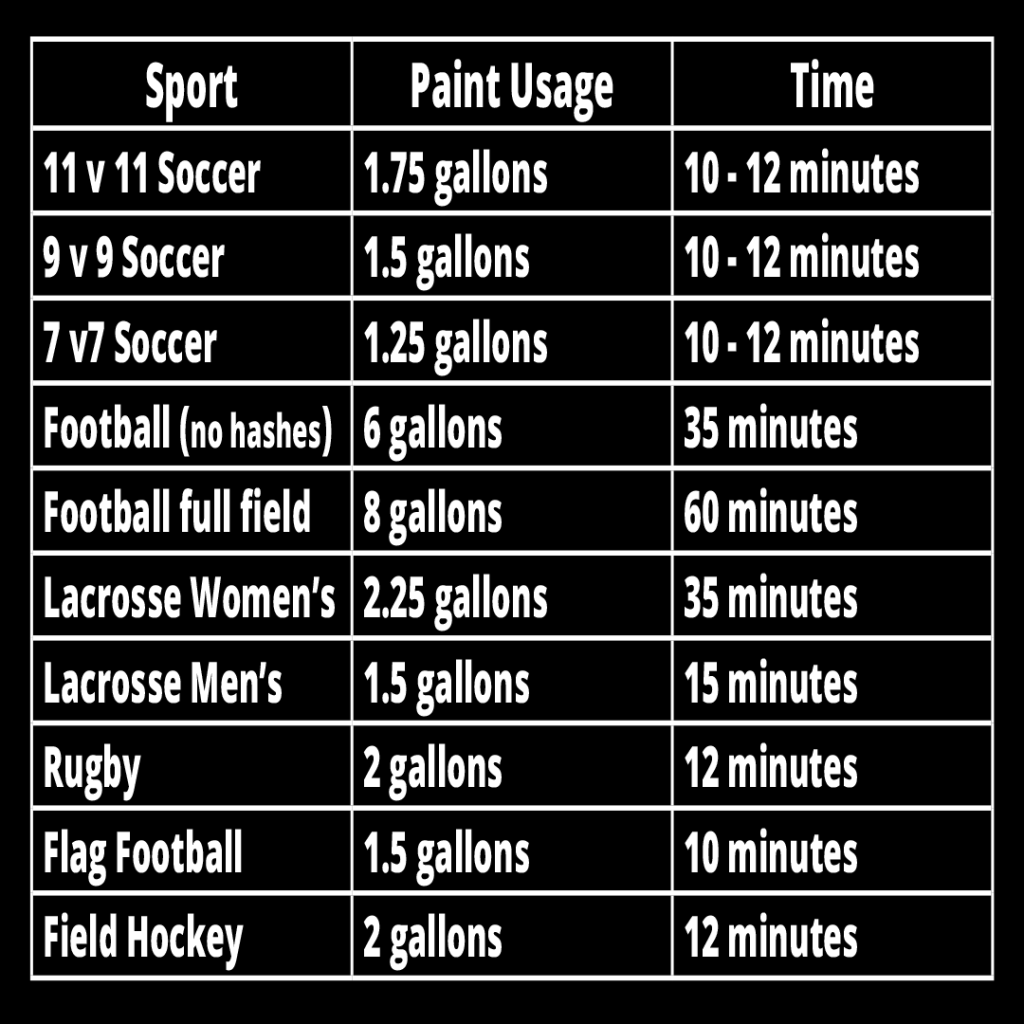

Sportstraq users can line fields all day using a high capacity paint skid utilizing a high-pressure spray system. Line marking a professional size soccer field can be accomplished in under 15 minutes and transporting between fields is fast. The Sportstraq autosteer system drives the vehicle with centimeter accuracy while controlling the paint system. Simply use the app on your iPad to layout your measurements, create your lines, and save every detail for future use. It’s that simple.
This robust painting system has features unmatched by Robots or other GPS striping machines system including:

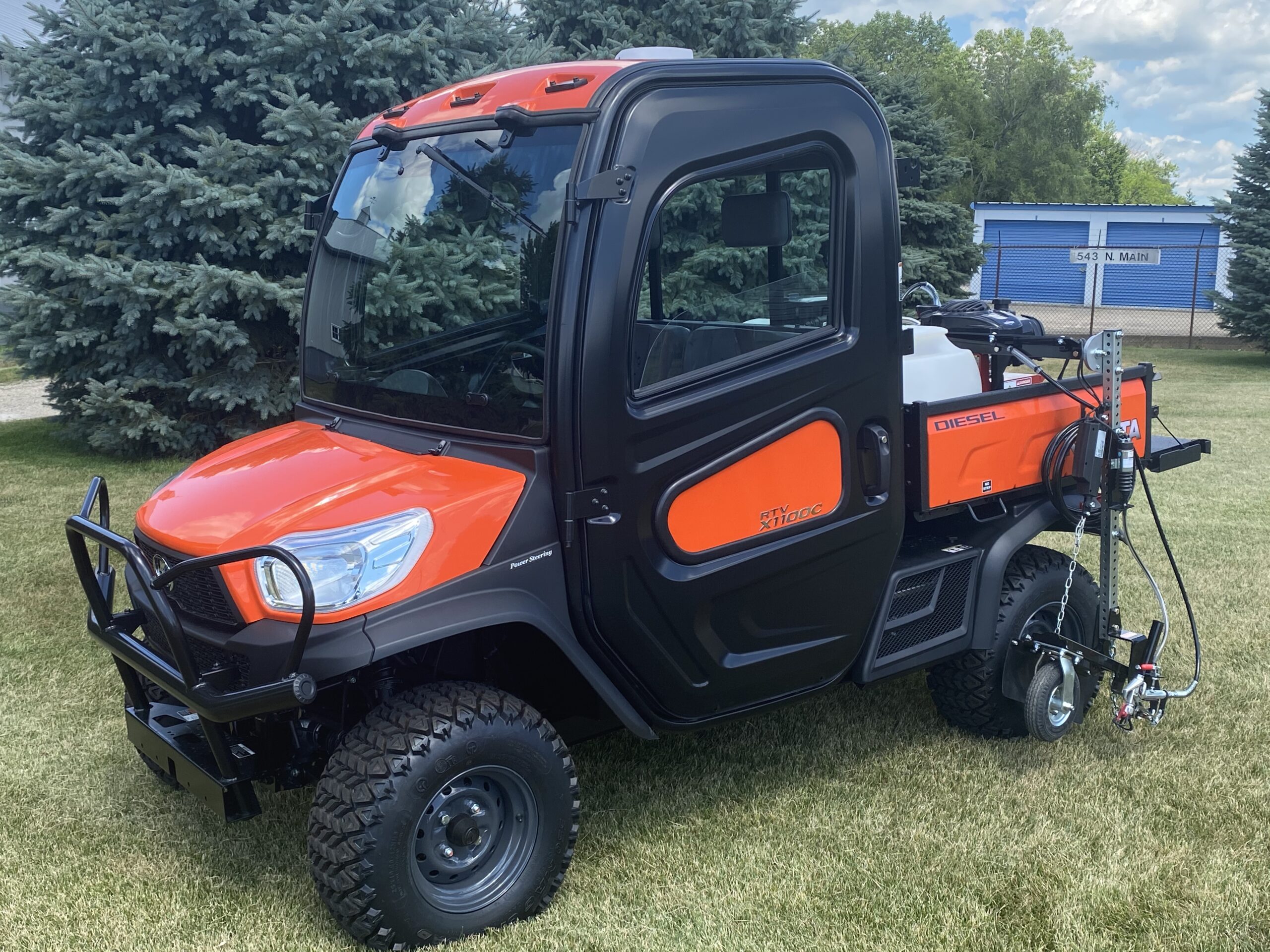

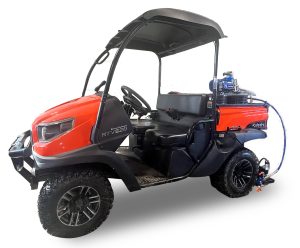

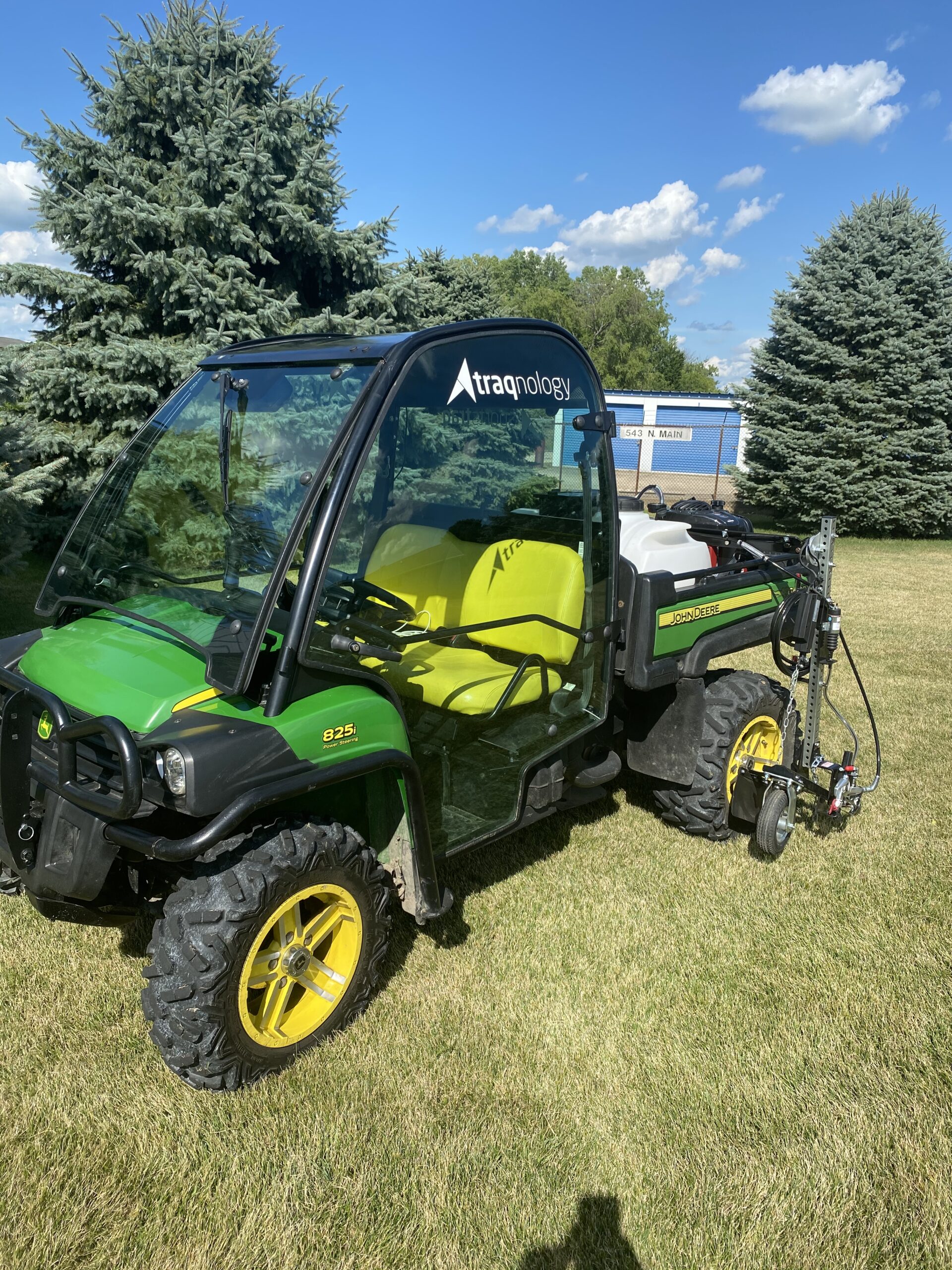

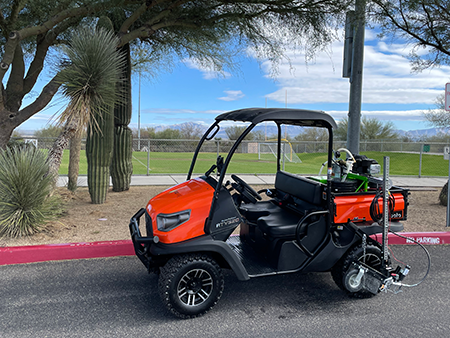

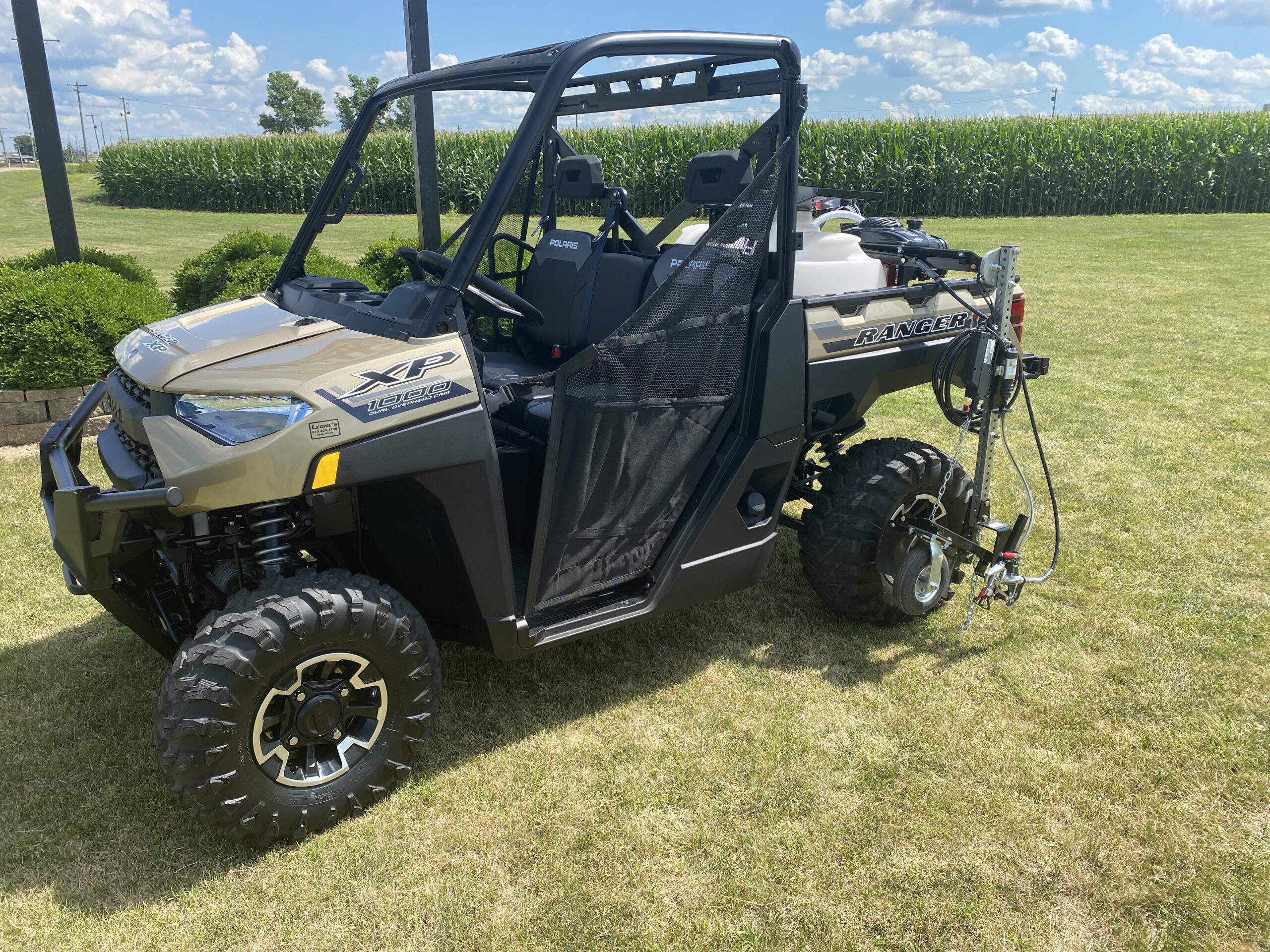

Fits on most popular UTVs – Two seater UTV with open wagon bed including John Deere, Kubota, Ranger and others.
Fast – Paint at speeds up to 9 mph (Robot stripers paint at speeds of about 2 mph and manual walk behind and riding stripers speeds range from 2-4 mph).

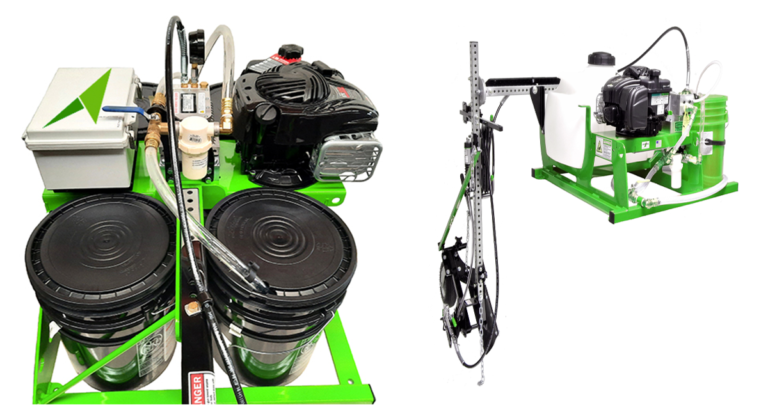

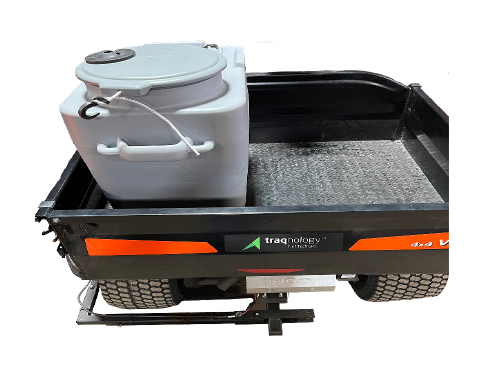

Fewer Stops – The total paint capacity is thirty gallons. The 25 gallon main paint tank lets you stripe miles of line before refilling. Alternately, use the super convenient five gallon pail option on smaller jobs such as a single field or quickly changing to a second color.
Adjustable Spray System – 0-3000 psi paint pump allow you to select the perfect pressure to apply
your paint. Plus, it lets you dial in the spray so you stripe “just the turf” without wasting paint, injecting the soil, or disturbing the rubber filling.
Reduce Paint Budget – No expensive, exclusive, special paint required. Works with any brand of field marking paint. Thick paint, thinned paint, temporary paint.

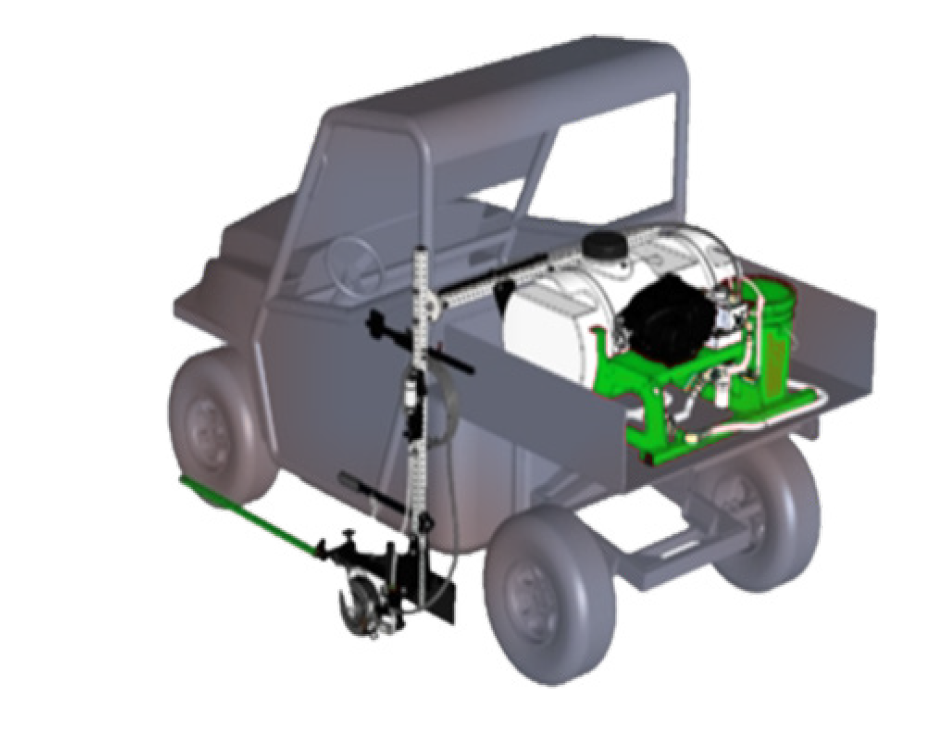

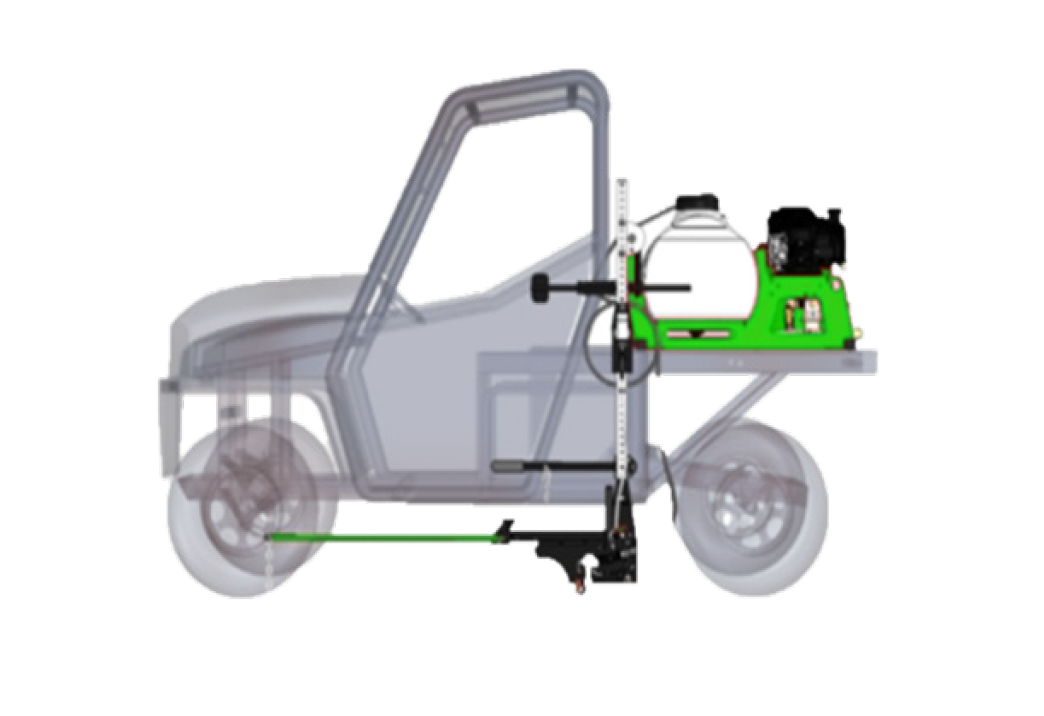

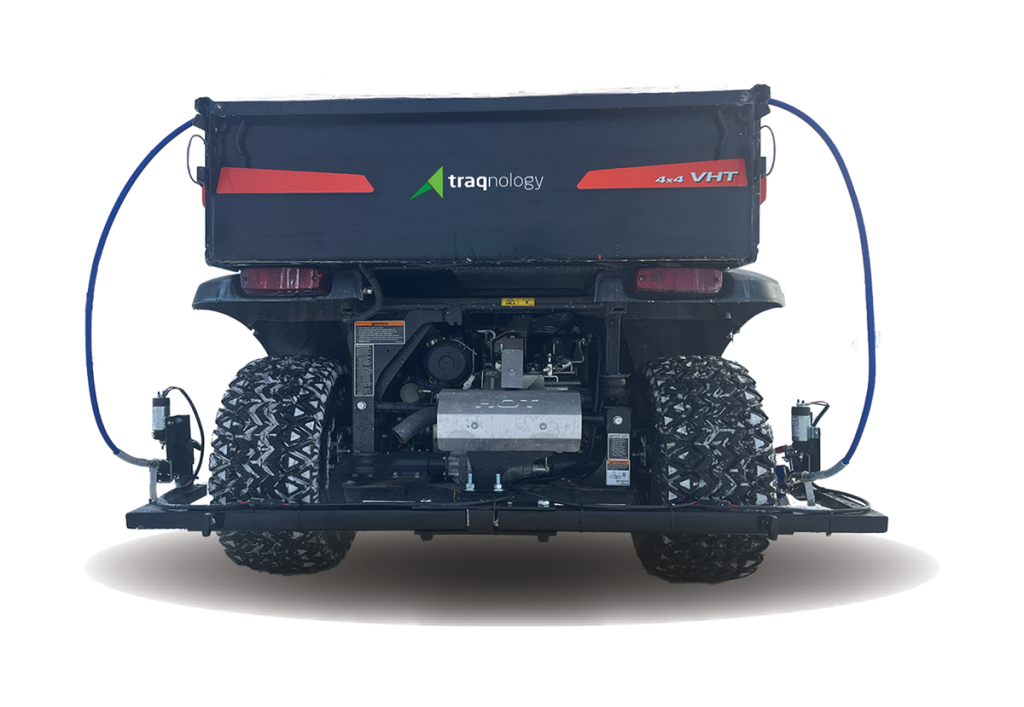

Consistent High Quality Line – Gun mounts close to pivot wheel improving controllability and the floating swivel caster allows it to follow ground contours while maintaining line width for more consistent lines over rough terrain.
Versatile – A quick release clamp allows you to remove the spray gun to spray stencils, small curves and hard to reach areas with a 25 foot length hose.
Bomb Proof, Durable Design – This machine is designed for real time hard work. Welded steel chassis, heavy duty, and commercial components. Backed by an eighteen month warranty.

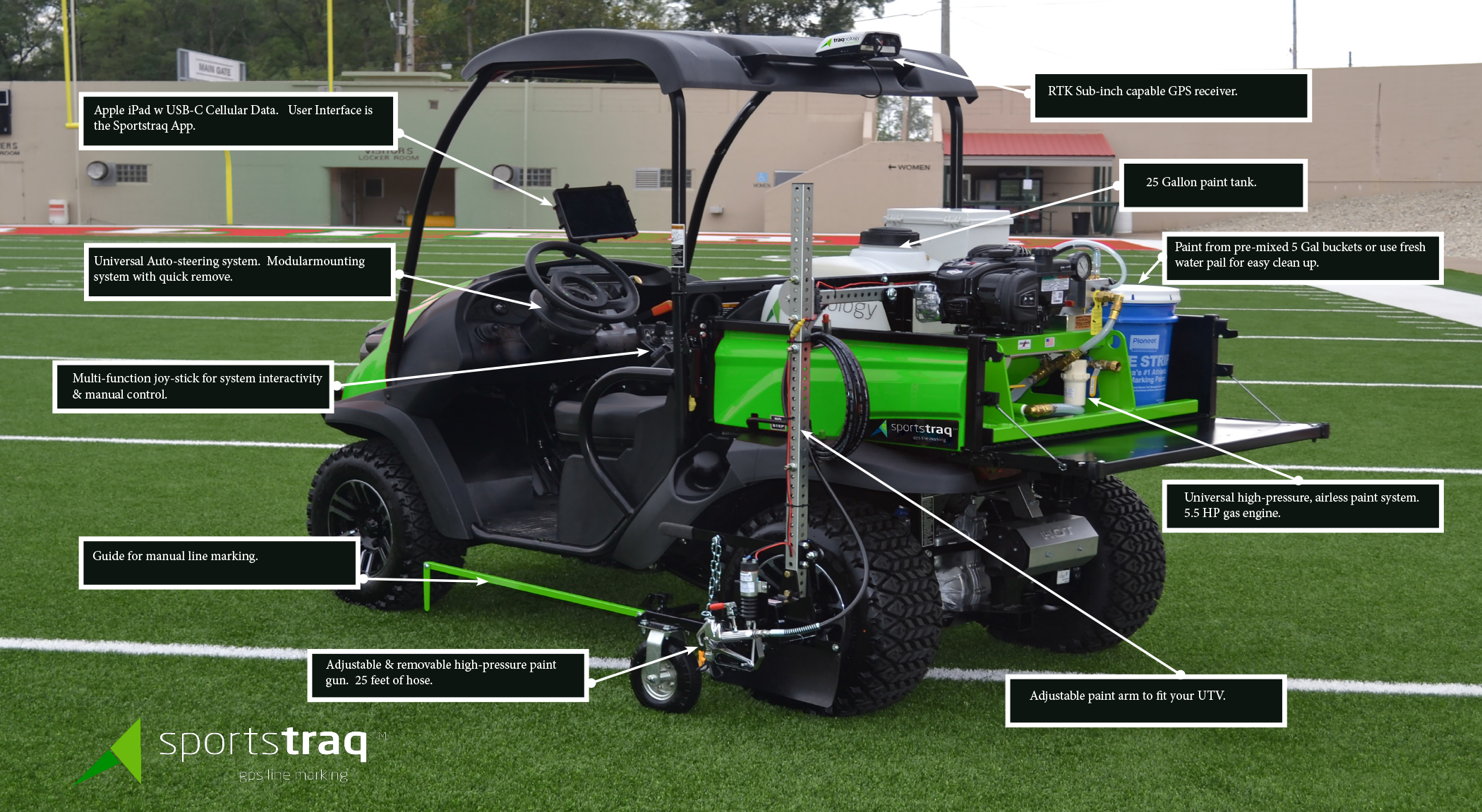

THE DETAILS
- Each component is modular & is easy to move from machine to machine.
- Sportstraq will work on any UTV with easy or power steering.
- Installation can be completed on-site or with one of our dealer partners.
- Installation, calibration, & training takes 1 full day for most installations.
- iPad is required upon installation. Customers may supply their own.

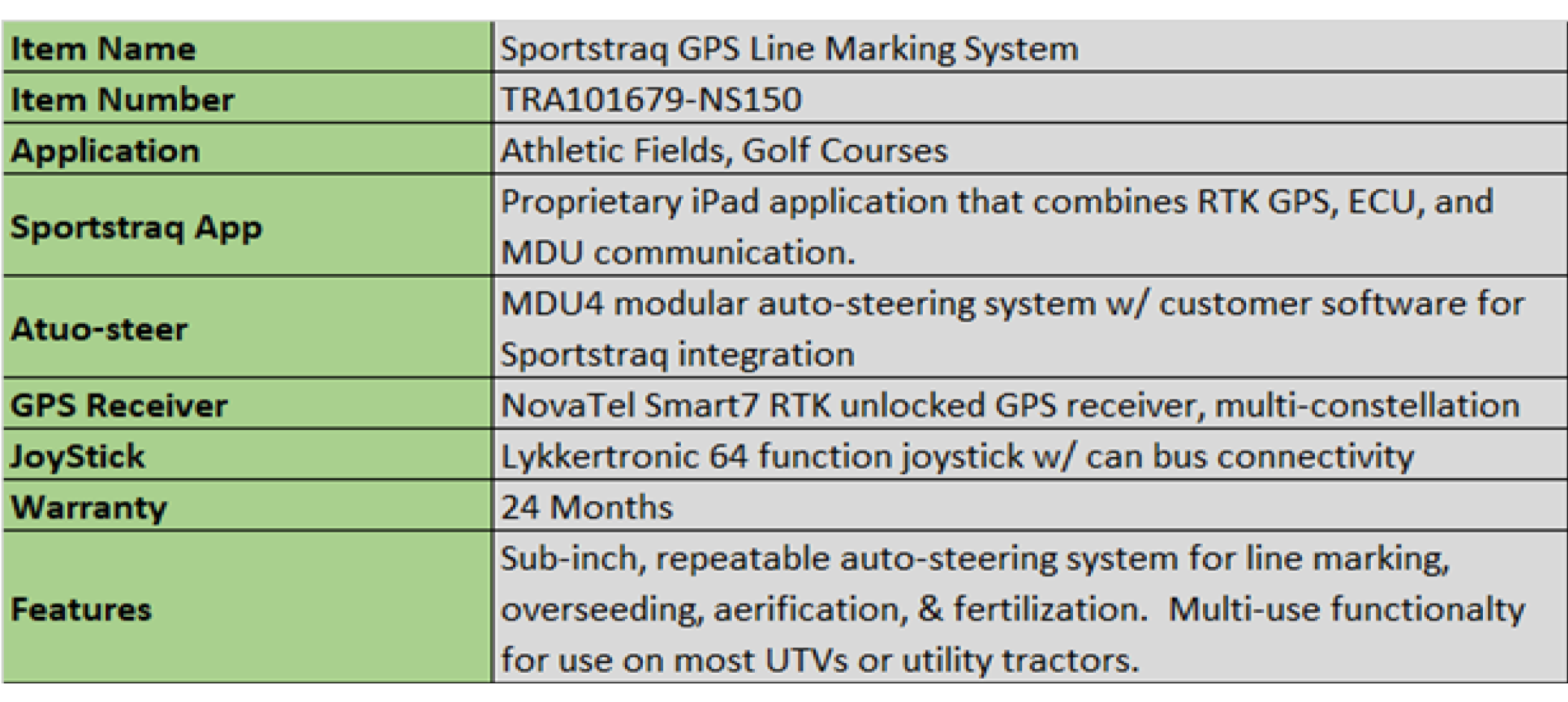

GPS COMPONENTS
GPS RECEIVER
Sportstraq utilizes a Smart7 full RTK receiver. This receiver uses all four main GNSS navigation constellations (GPS, Galileo, GLONAS, Beidou) to model the most accurate position possible. This receiver is magnetically mounted and easily moved from machine to machine. Traqnology backs this with our own RTK Network providing the best and most efficient means of achieving sub-inch, repeatable GPS corrections.
AUTO-STEERING

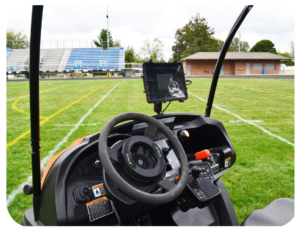

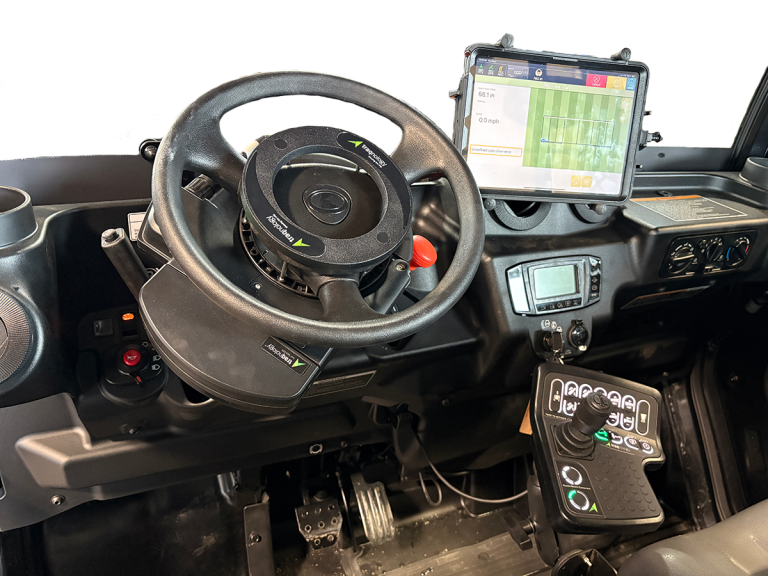

The accuracy behind sportstraq’s perfect lines and circles is our universal auto-steering system. Simply mount a gear ring on the center of the steering wheel and clip around that the drive motor. Again, this system is modular and able to be moved between equipment. While painting you simply engage the enable auto on the i-Pad and let go of the steering wheel. Sportstraq software drives your UTV with half-inch precision.

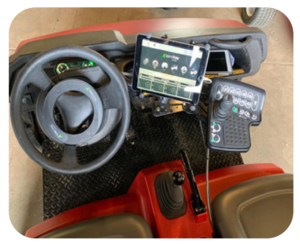

JOYSTICK
Traqnology’s multi-function joystick offers flexibility for sportstraq users to interact with the iPad while line marking. The joystick allows for up to four separate pumps to be integrated into the painting system. The stick allows the user to select which field line to paint or to skip certain lines. The two buttons on the stick allow the auto-steer system to be engaged and the ability to turn the paint system on or off manually.

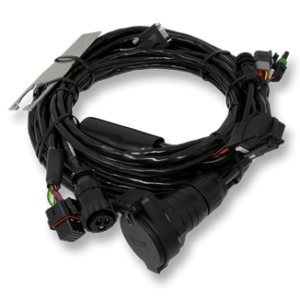

WIRE HARNESS
Traqnology’s universal wire harness allows sportstraq to be installed on a wide variety of UTV’s. We have the flexibility to modify component mounting to fit the most unique situations.
36-Month Commercial Warranty
to prove how much we believe in the quality of our painting system, Traqnology backs it with a 36-month limited warranty. This warranty covers both consumer and commercial use and is the longest paint system warranty in the sports turf industry! See warranty documentation for details.
TECHNICAL SUPPORT
Traqnology provides all sportstraq users with 7 day a week / 365 days per year technical support. Our team of GPS professionals work for and are trained by Traqnology North America. Simply call our toll free number, our techs will record all information into our ticketing software and walk the user through troubleshooting. If a software issue presents itself, our techs can remotely log into the iPad to take care of the issue.
HOW IT WORKS
Field Marking GPS by Traqnology
New Field and Design
Easily key in information about a new line marking – you choose the sport, the size, and the way you want to design your field.
Field Design A-B
Create a new field from right where you are by selecting the outer boundary line, giving the equipment a starting point and direction. You can measure distances, and select the direction you want to go. The field can then be adjusted in length and width.
Field Design – Satellite Map
Prepare for the season ahead by marking up all your football fields using a Satellite photo as starting point.
Field Design From Fixed Posts
Here you can mark your fixed posts in soccer so the lines will fit the placement of your posts even if they are not placed exactly where they should be.
Field Design – Aligned
You can easily place your fields on a map, copy, slide and rotate your fields so you are sure they are aligned in the way you want it.
Over Marking
We have designed a user friendly interface for over marking in cooperation with actual users, so all you need is 2-3 taps on the screen and you can start working.
History and Planning
In “Field Designs” you can plan which field designs you want to be active in “automatic help to selection of nearest field”. You can look up line marking and fields by different criteria and edit the information. This is relevant for planning a day’s work or invoicing and statistics.
Documentation and Backup
Every time a field is marked, the data for who did what, where and when is stored, so invoicing and correct documentation is in place. All information is stored on a central server so you can retrieve it should your iPad break down.
